點擊圖片查看原圖
技術參數:
切割范圍:1800mmX1200mm
切割功率:600W
內存容量:機器自帶64MB存儲,可脫機工作
切割精度：±0.05mm
支持軟件：AutoCAD，Coreidraw
支持格式：DXF、PLT、DST、BMP格式
驅動方式：采用精密絲桿傳動
切割厚度：≤25mm
工作電壓：220V±10% 50HZ
工作溫度：0℃－45℃
工作濕度：5－95%（無凝水）
設備特點
1.采用單頭切割方式，大大提高了速度，，所以切縫更加均勻。
2.消耗極低：:外接電源220V即可，且即開即用無須開機等待時間，激光刀模切割機運行每小時成本不到五塊錢。
3.操作簡便：簡單明了的刀縫調節技術，切割軟件與AutoCAD、CorelDraw、Adobe Photoshop均能兼容，操作編輯路徑得心應手。
4.穩定性高：采用固定光路結構，采用臺灣進口原裝導軌，X、Y雙方向進口精密滾珠絲桿傳動，保證傳動的精準性和穩定性。
5，超長耐用，切割時無須添加任何輔助氣體。激光反射聚焦鏡片采用美國原裝進口，大大降低激光功率在傳輸過程中的衰減。
6.采用封閉式恒溫工業激光冷卻系統，為光路提供穩定的精確的水溫控制 ，大大延長了激光管的使用壽命
7.應用范圍：適應面廣：可一次性切割，15MM、18MM、20MM、23MM木板刀模、膠板刀模、有機玻璃、木板木材、壓克力板等非金屬板材，切割18MM木板每小時可切40-45米。
技術支持
成套產品輸出以及強大的技術支持，送貨上門安裝調試，負責激光刀模機操作員的培訓上崗，讓您在使用過程中沒有后顧之憂
售后服務
1.整機保修一年。

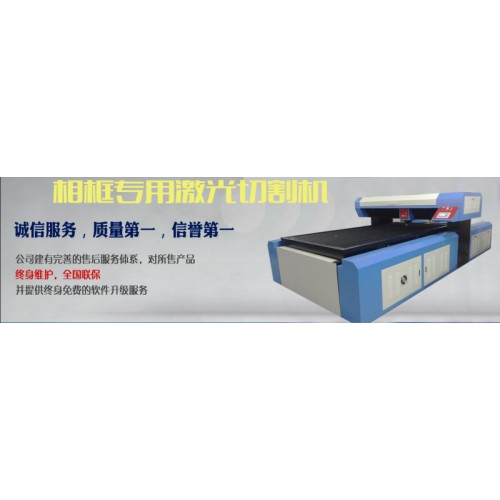

AL- 600 w single head laser cutting machine
AL- 1218 single head laser cutting die cutting machine
Technical parameters:
Cutting range: 1800 mmx1200mm
Cutting power: 600 w
Memory capacity: machine with 64 MB of storage, can work offline
Cutting accuracy: + / - 0.05 mm
Support software: AutoCAD, Coreidraw
Supported formats: DXF, PLT, DST, BMP format
Driving mode: the precision lead screw transmission
Cutting thickness: 25 mm or less
Working voltage: 220 v + 10% for 50 hz
Working temperature: 0℃- 45℃
Working humidity: 5-95% (without condensate)
【Characteristics of the equipment】
1. Adopts single head cutting method, greatly improving the speed, and so more uniform kerf width.
2. Low consumption: an external power source 220 v, and out-of-the-box without boot wait time, laser knife mold cutting machine running cost less than five dollars an hour.
3. Easy operation, simple and clear knife slit adjustment technology, cutting software and AutoCAD, CorelDraw, Adobe Photoshop can compatible, edit path handy operation.
4. The high stability: the fixed optical path structure, adopt Taiwan import original guide rail, X, Y, the two sides to import precision ball screw drive, to guarantee the precision and stability of the transmission.
5, long durability, do not need to add any auxiliary cutting the gas. Laser reflection focus lens in U.S. imported and greatly reduce the laser power attenuation in the transmission process.
6. The enclosed thermostat industrial laser cooling system, the optical path of steady precise temperature control, greatly extend the service life of laser tube
7. Application: adaptation of wide: one-time cutting, 15 mm, 18 mm, 20 mm, 23 mm wood die cutter, adhesive BanDao mould, organic glass, wood wood, acrylic board etc. Nonmetal sheet, 18 mm cutting board can be cut 40-45 meters per hour.
Technical support
Complete set of product output, and strong technical support, home delivery, installation and debugging for laser knife mold machine operator training mount guard, let you in use process have no trouble back at home
After-sales service
The machine warranty for one year.
