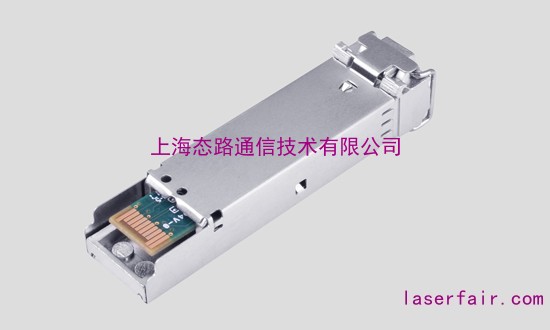

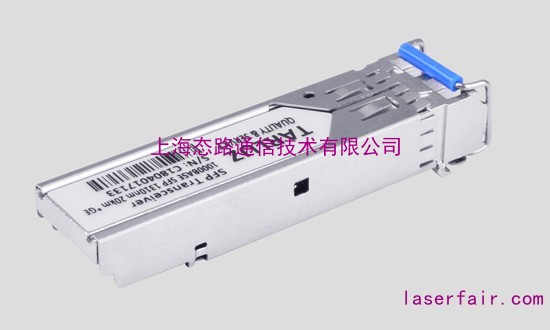

TARLUZ SFP Transceiver series with various types for different applications like SONET/SDH, xWDM, Ethernet, Metro Network, Wireless Network and Transmission network. The transceivers support rates from 155M to 4.25Gbps via single fiber or duplex fiber, the transmission distance from 100m to 160km. All transceivers specifications and features are fully compliant with SFP MSA. TARLUZ SFP with perfect compatible performance, is economic solution compare with original factory with device suppliers.
產品特點:
Data rate range from 100Mb/s to 4.25Gb/s
Maximum distance up to 120km
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Compatible with SonET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature: Standard: 0 to +70°C Industrial: -40 to +85°C
產品應用:
Gigabit Ethernet Switches and Routers
Fiber Channel Switch Infrastructure
Other Optical link
訂購信息:
Type | Distance | Data Rate | Wavelength | Fiber | Connector | Temp. |
TL-SFP-85155-2D | 2km | 155M | 850nm | MMF | Duplex LC | 0 ~ 70°C |
TL-SFP-13155-2D | 2km | 155M | 1310nm | MMF | Duplex LC | 0 ~ 70°C |
TL-SFP-13155-20D | 20km | 155M | 1310nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-13155-40D | 40km | 155M | 1310nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-13155-80D | 80km | 155M | 1550nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-15155-120D | 120km | 155M | 1550nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-85622-550D | 550m | 622M | 850nm | MMF | Duplex LC | 0 ~ 70°C |
TL-SFP-13622-20D | 20km | 622M | 1310nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-13622-40D | 40km | 622M | 1310nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-15622-80D | 80km | 622M | 1550nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-8512-550D | 550m | 1.25G | 850nm | MMF | Duplex LC | 0 ~ 70°C |
TL-SFP-1312-2D | 2km | 1.25G | 1300nm | MMF | Duplex LC | 0 ~ 70°C |
TL-SFP-1312-10D | 10km | 1.25G | 1310nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-1312-20D | 20km | 1.25G | 1310nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-1312-40D | 40km | 1.25G | 1310nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-1512-40D | 40km | 1.25G | 1550nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-1512-80D | 80km | 1.25G | 1550nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-1512-120D | 120km | 1.25G | 1550nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-1512-160D | 160km | 1.25G | 1550nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-1325-10D | 10km | 2.5G | 1310nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-1325-20D | 20km | 2.5G | 1310nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-1325-40D | 40km | 2.5G | 1310nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-1525-40D | 40km | 2.5G | 1550nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-1525-80D | 80km | 2.5G | 1550nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-1342-10D | 10km | 4.25G | 1310nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-1342-20D | 20km | 4.25G | 1310nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-1342-40D | 40km | 4.25G | 1310nm | SMF | Duplex LC | 0 ~ 70°C |
