有效幅面 Work table size（可訂做） 1600mm*1000mm 1900mm*950mm

整機尺寸長/寬/高 2200*1550*1050 2550*1650*1120

激光管功率 Laser tube power（可選配） 80W 80W/100W

總功率 800/1350W

激光器類型 Type of laser CO2封離式玻璃管激光器，水冷，10.6μm

切割速度 25-36000mm/min

圖像識別范圍 Image recognition range 105mm*80mm

激光能量控制 實時可調

最大掃描精度 Maximum scanning precision 25-2500DPI

支持圖形格式 DST、PLT、BMP、DXF

支持軟件 Support software CORELDRAW、PHOTOSHOP、AUTOCAD



相關參數/ Relevant Parameters

應用材料Application materials：

    適用于各布料（真絲、純棉布料、裝飾面料、滌綸面料、化纖面料、純麻面料）、毛氈、坯布、無塵布、無紡布、貼布繡等服裝輔料及皮革料切割或雕刻；皮革（真皮、人造革、裝飾革、包裝革、軟面革），紙板及多種面輔料、工業用材料、航空航天特殊材料；織嘜、印嘜、膠章、絲印商標、提花織帶等，切口平滑不散邊、不變形，尺寸一致且可多層同時切割，任意復雜形狀；效率高、成本低，效果完美，可邊設計邊出產品，操作如同打印機一樣簡單、方便。



Suitable for all fabrics（Silk, pure cotton cloth, decorative fabric, polyester fabric, chemical fiber fabric, pure ramie fabric）, blankets, cloth, dust-free cloth, non-woven fabrics, embroidered fabrics, garment accessories and leather cutting or engraving；Leatherwear, cardboard and various materials, industrial materials, aerospace special materials；Woven label, printed labels, plastic chapter, size consistent and accurate; can be cut at the same time, arbitrary complex shape; high efficiency, low cost, the effect is perfect, can design and produce products, operation is simple, easy to operate as a printer trademark ,printing, jacquard ribbon, smooth incision not loose edge and no deformation, the same size and precise

適用行業Applicable industry：

     服裝行業、鞋業、家紡業、刺繡業、商標業、布制玩具業、皮革業、箱包業、傘業、醫用業、凈化業、航空業、經編業等。

  Garment industry, footwear, textile industry, embroidery industry, business biding, cloth of the toy industry, leather industry, luggage industry, umbrella, medical industry, purification industry, aviation industry, warp knitting industry.

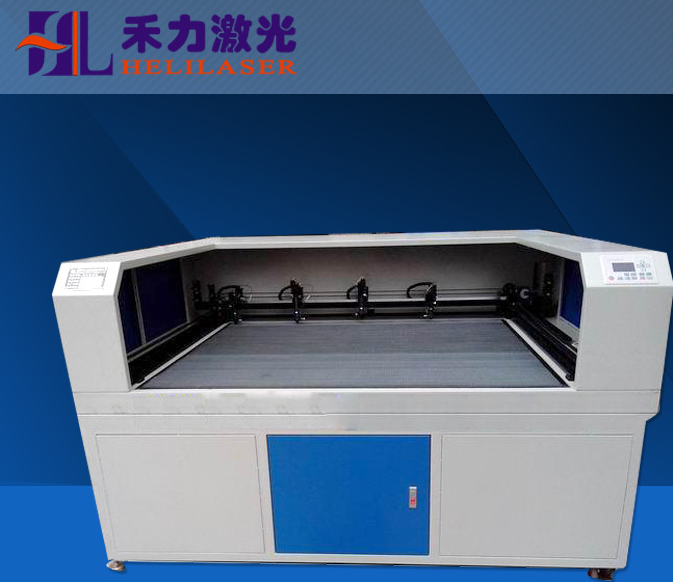

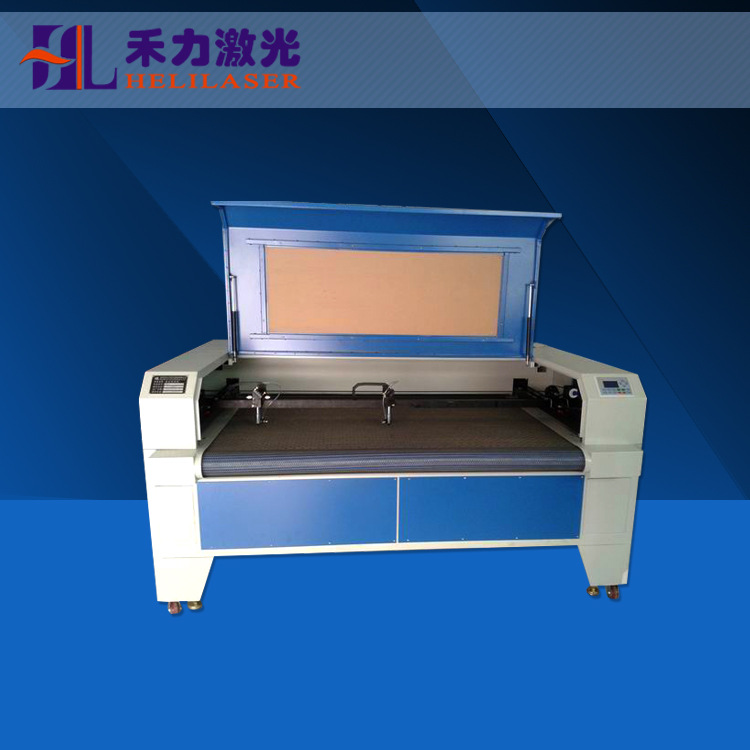

 產品說明Product description：『禾力激光』HL1610-HL1995激光雕花切布兩用機，是我司在吸收國外同類設備先進技術基礎上,自主研制生產的多功能激光兩用設備，在激光機機型中屬于中功率中幅面設備。經過幾年的市場錘煉，性能極為穩定成熟，雕刻精細，切割速度快，可高速度無故障連續加工作業，是國產同類機型中的精品，是性價比非常優異的一款設備！

『禾力激光』HL1610-HL1995 laser engraving and cutting dual-purpose machine is my company in the absorption of foreign advanced technique of the same kind equipment based, independent development and production of multifunctional laser dual-use equipment, in laser machine belongs to the power format equipment. After several years of market temper, performance is very mature and stable, fine carving, cutting speed, high speed fault free continuous processing operations, quality is in the domestic similar models, price excellent a device.

功能特點Functional characteristics：

1、進口均衡直線導軌，確保長時間工作

2、技術先進的進口步進電機，使機械運行更加高速、穩定可靠；

3、工作區域內建照明設備，前后門可開設計能加工超長工件；

4、加工面料范圍廣、切口平滑無飛邊、自動收口、無變形、圖形可通過電腦隨意設計；

5、貼布繡切割（繡前切割和繡后切割）、異型商標切割、服裝裁片、皮革鏤空、成衣加工、牛仔噴花等 服裝面輔料表面的切割與雕刻，可以對單層或多層布料一次性切割、打孔、雕花；

6、特制負壓吸附工件，專用布料通道及張緊結構設計，有效保證裁剪質量；

7、智能化軟件編輯，用戶可根據加工需要，設置加減速度/勻速操作方式，圖文輸出可實現清掃、勾線 、切割一次性完成，具備兼容：CAD/CAM、CORELDRAW、PHOTOSHOP等軟件;

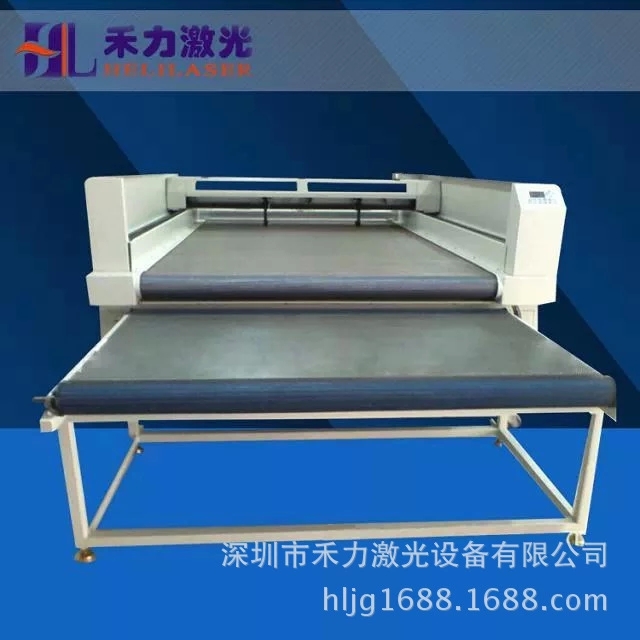

8、加工幅面大，前后可無限進料操作；

9、外形結構采用仿鋼琴噴漆工藝完成，加厚鋼材料，更加穩固美觀，更能保證設備操作。

1.imported balanced linear guide, ensure the long time work accurately;

2.Advanced technology imported stepper motor, so that the mechanical operation is more rapid, stable and reliable;

3.The work area to build lighting equipment, the front and rear doors can be designed to be able to process long workpiece;

4.Processing wide range of fabrics, cut smooth without burr, automatic closing, no deformation, graphics by computer random design;

5.Paste embroidered cloth cutting (embroidery before cutting and embroidery cutting), special-shaped trademark cutting, cut pieces of clothing, leather hollowing, garment processing, cowboy stencil printing and garment accessories surface cutting and carving can be one layer or multi-layer cloth disposable cutting, drilling, carving;

6.Special negative pressure adsorption of the workpiece, special distribution channel and the structure design, effectively guarantee the cutting quality;

7. Intelligent editing software, the user can add and subtract speed / constant speed operation mode according to the requirement of the machining and graphic output can be cleaning, hook line, cutting to complete a one-time, with compatible: CAD / CAM, CorelDRAW, Photoshop and other software;

8.Large format processing, before and after infinite feed operation;

9.The appearance of the structure of the piano painting process is completed, thicker steel materials, more solid and beautiful, more able to ensure the accuracy of the operation of the equipment.

禾力激光雕刻切割機配置與服務：Configuration and service

1、 激 光 器：長度1.6米，最大發光功率80W，聚焦后切割功率75W。

2、 導    軌：臺灣原裝直線導軌，臺灣上銀牌導軌，

3、 驅動系統：八線高速步進系統，專業驅動器驅動。

4、 硬件插補：切割各種圖形反應快。

5、 冷卻水箱：配置CW3000型冷水箱。

6、 650W強力抽風機。

7、 500W空壓氣泵。

8、 進口聚焦鏡。

9、 全套禾力軟件激光切割雕刻系統。

Laser: length of 1.6 meters, maximum luminous power 80W, focused after cutting power 75W.

Guide rail: Taiwan original linear guide rail, Taiwan on the silver guide rail, high precision.

Drive system: eight line high speed stepper system, professional driver.

The only domestic, cutting a variety of graphics, high precision, fast response.

Cooling water tank: CW3000 type cold water tank.

650W powerful exhaust fan.

500W air compressor pump.

imported focus lens.

Full set of software laser cutting and engraving system.



技術支持及售后Technical support and after sales

1 、負責操作人員的使用和技術培訓。

2 、負責設備的運輸、安裝和調試到位。

3 、負責軟件的免費升級服務。

4 、提供設備的終生上門維修服務。

5 、購機時我廠提供的配件免費一年保修。

Responsible for the operator's use and technical training.

Responsible for transportation, installation and commissioning of the equipment.

Responsible for software free upgrade service.

To provide equipment for a lifetime home repair service.

Our factory provides purchase accessories free one year warranty.



若有疑問、或其它要求，盡請來電與禾力激光公司相商，我們將竭誠為您服務。If you have any questions, or other requirements, please call and Heli laser company to discuss, we will serve wholeheartedly for you.
