Cambridge Technology INC 6870 6880振鏡特點 (CTI6870 6880)
高定位精度和可重復性:動磁傳感技術與CTI的創新提供了電容式位置檢測器的準確,分辨率最高的動磁式檢流計的設計和可重復性。這種電容的位置探測器的動磁耦合器提供的定位精度隨時間和溫度高定位線性,重復性和穩定性。在與我們的671伺服驅動器的組合,模型可以達到6870 6880 8 microradians短期重復性。
振鏡速度和步驟響應時間:在6870 6880系列是專門設計用來最大限度地提高系統的高速應用的性能。憑借我們與我們的678伺服驅動器驅動器結合先進的設計,CTI6870,CTI6880系列可以達到1角的小范圍變動0.5毫秒的響應時間步千赫的速度。
高系統性能和可靠性隨著時間:高級產品壽命和紀律的設計技術,在軸承技術和質量最好的制造工藝和工藝可靠性。制造質量保證性能的一致性,你需要設計的高品質系統劍橋科技的高標準要求在當今競爭激烈的市場。
配套產品
提供CTI配套產品,包括伺服驅動器振鏡板和XY振鏡電機。每一個是專門設計來提升系統的性能,提高用戶的能力。

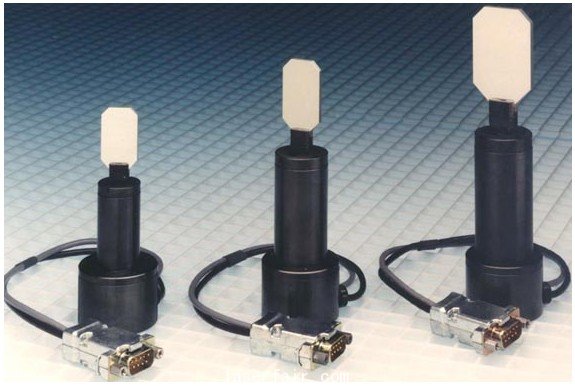

Model 6870 Moving Magnet Capacitive Position Detector Optical Scanner
CTI6850,CTI6860,CTI6870系列振鏡馬達,CTI振鏡電機出售及維修電話15990199065顧先生
Supports 12mm and 15mm beam apertures.
Galvanometer Specifications
All Position Detector specifications apply with Cambridge Technology servo driver after a 30 second warm-up. All angles are in mechanical degree. Consult manual for complete operating instructions.
Mechanical Specifications
Rated Angular Excursion: 40°
Rotor Inertia: 2.0 gm*cm2, +/-10%
Torque Constant: 1.8X105dyne-cm/amp, +/-10%
Maximum Coil Temperature: 110°C
Thermal Resistance (Coil to Case): 1.0°C/Watt, Max
Electrical Specifications/Drive Mechanism
Coil Resistance: 1.4 Ohms, +/-10%
Coil Inductance: 275uH, +/-10%
Back EMF Voltage: 0.3mV/degree/sec, +/-10%
RMS Current: 5.3 Amperes at Tcase of 50°C, Max
Peak Current: 25 Amperes, Max
Small Angle Step Response Time: 0.7ms, with balanced 2.0gm*cm2 load
Position Detector
Linearity: 99.9%, Minimum, over 40 degrees
Scale Drift: 50PPM/°C, Maximum
Zero Drift: 15 microradians/°C, Maximum
Repeatability, Short Term: 8 microradians
Output Signal, Common Mode: 585 microamperes with AGC voltage of 10VDC, +/-20%
Output Signal, Differential Mode: 14.5 µA/degree, at common mode current of 585 µA, +/-20%
美國CTI振鏡,美國劍橋高速掃描振鏡,美國CTI6860系列掃描振鏡出售及維修電話15990199065顧先生
Model 6880 Moving Magnet Capacitive Position Detector Optical Scanner
Supports 20 mm and 30 mm beam apertures.
Galvanometer Specifications
All Position Detector specifications apply with Cambridge Technology servo driver after a 30 second warm-up. All angles are in mechanical degrees. Consult manual for complete operating instructions.
Mechanical Specifications
Rated Angular Excursion: 40°
Rotor Inertia: 6.4 gm*cm2, +/-10%
Torque Constant: 2.54X105dyne-cm/amp, +/-10%
Maximum Coil Temperature: 110°C
Thermal Resistance (Coil to Case): 0.75°C/Watt, Max
Electrical Specifications/Drive Mechanism
Coil Resistance: 1.0 Ohms, +/-10%
Coil Inductance: 280uH, +/-10%
Back EMF Voltage: 0.44mV/degree/sec, +/-10%
RMS Current: 7.5 Amperes at Tcase of 50°C, Max
Peak Current: 25 Amperes, Max
Small Angle Step Response Time: 0.9ms, with balanced inertia matched load
Position Detector
Linearity: 99.9%, Minimum, over 40 degrees
Scale Drift: 50PPM/°C, Maximum
Zero Drift: 10 microradians/°C, Maximum
Repeatability, Short Term: 8 microradians
Output Signal, Common Mode: 970 microamperes with AGC voltage of 10VDC, +/-20%
Output Signal, Differential Mode: 22 µA/degree, at common mode current 970 µA, +/- 20%
美國CTI振鏡,美國劍橋高速掃描振鏡,CTI6200系列振鏡馬達
美國劍橋公司全名CambridgeTechnologyINC,簡稱CTI,成立于1978年作為一個供應商,在生物醫學研究領域的儀器儀表產品的開發商。當時他們建立技術創新,高品質的制造和客戶承諾CTI的標準。在努力實現的精度和準確度的最高級別的產品,劍橋高速奠定了閉環振技術,現在是劍橋的獨家產品重點的基礎。本公司直接代理銷售美國劍橋(CambridgeTechnologyINC)的各型號掃描振鏡并提供維修服務。部分產品型號如:美國Cambridge Technology INC(劍橋)6860、CTI6860、CTI6870、CTI6880、CTI6800、CTI6810、CTI6850、CTI VM-Series、CTI VM500plus、CTI 6231HB、CTI 6240H、CTI 6200、CTI 6210、CTI 6850P、CTI 6810P等。
