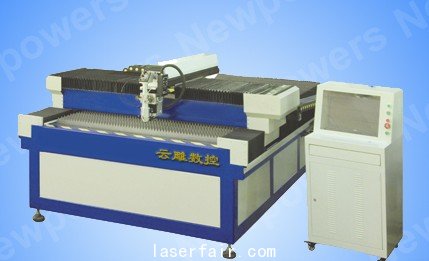

云雕YD-500-1325數控金屬激光切割機
YD-500-1325 CNC metal laser cutting machine
設備優勢/Equipment advantage：
1、精度高：適用于精密配件的切割和各種工藝字、畫的精細切割。
2、速度快：是線切割的100倍以上。
3、熱影響區小，不易變形。切縫平整、美觀，無需后序處理。
4、性價比極高：價格只有同類性能CO2激光切割機的1/3，及同等功效數控沖床的2/5。
5、使用成本很低：僅為同類CO2激光激光切割機的1/8～1/10，每小時成本僅為18元左右，CO2激光切割機每小時成本為150～180元左右。
6、后續維護費用很低：僅為同類CO2激光切割機的1/10～1/15，及同等功效數控沖床的1/3～1/4。
7、性能穩定，保證持續生產。固體YAG激光器是激光領域最穩定最成熟產品之一。
8、和數控沖床比較，YAG激光切割機具有以下優點：
   （1）能完成各種復雜結構的加工，只要能在電腦上畫出任何圖像，該機都能完成加工。
   （2）不需要開模，只在電腦上將圖作出，產品馬上就可以出來，即能快速開發新產品，又能節約成本。
   （3）YAG切割機有自動跟蹤系統，所以即能完成平面切割，也能完成各種高低不平的曲面切割。
   （4）復雜的工藝要求數控沖床難以完成，激光切割都能做到。
   （5）表面非常光滑，產品檔次很高，數控沖床難以做到。
   （6）成型的箱體（厚0.5米以內）需增加孔槽等處理，數控沖床無法處理，YAG數控金屬激光切割機能解決。
1、High precision: applicable for cutting precision parts, calligraphy and painting.
2、Fast speed: its speed is 100 times more than line cutting.
3、Small heat-affected zone, not easy to metamorphose, cutting edge is smooth and beautiful, no need to do after-process.
4、High performance: Its price is only 1/3 of similar performance CO2 laser cutting machines and 2/5 of CNC punch machines.
5、Low using cost: its using cost is only 1/8 to 1/10 of similar performance CO2 laser cutting machines about RMB18 for each hour, however the using cost of the CO2 laser cutting machines is about RMB150-180 each hour.
6、Low maintenance cost: only 1/10 to 1/15 of similar CO2 laser cutting machines and 1/3 to 1/4 of similar performance cnc punch machines.
7、Steady performance can ensure the continual production. Solid YAG laser equipment is one of the most steady and mellow products in the laser field.
8、Compare to CNC router, YAG laser cutting machine have following advantage.
（1）Can process various complex structures, any image drawing by computer, can be processed by this machine
（2）No need to open mode. Only need design the file from computer, then the product can come out immediately. Can quickly develop new products，and save the cost.
（3）YAG cutting machine with automatic tracking system, is able to complete the flat cut and
avariety of uneven surfaces cut#p#分頁標題#e#
（4）Those complex technical requirements can not completed by the CNC machine, this YAG laser cutting machine can do it well.
（5）Can produce the products with smooth surface in high grade. But CNC machine is hard to achieve.
（6）Molding body (less than 0.5 m thick) need the hole trench processing. CNC machine can not handle it, but YAG laser cutting machine is workable.
技術參數/Specification：

設備型號	Model number	YD-500-1325
加工幅面	working area	2500㎜×1300㎜
外形尺寸	machine size	3，645×2，015×1,300mm
最大切割厚度	Max.cutting thickness	6㎜(碳鋼/carbon steel）
最大輸出功率	Max.output power	620W
激光波長	laser wavelength	1064nm
脈沖頻率	Pulse Frequency	1--300HZ
最小線寬	Minimum line width	0.15mm
電力配置	Voltage	380V/50HZ/100A
X、Y、Z軸幾何定位精度	X,Y,Z axis geometry position accuracy	≤±0.08㎜/1000㎜
X、Y、Z軸重復定位精度	X,Y,Z axis Resetting position accuracy	≤±0.04㎜
機床重量	Whole machine Weight	3800㎏
冷卻方式	Cooling mode	7P水冷/7Pwater cooling system
最大切割速度	Max.cutting speed	35㎜/s

適用行業/Appliable industries：#p#分頁標題#e#
廣泛應用于廣告標牌制作、鈑金結構、高低壓電器柜制作、紡織機械零件、五金、金屬工藝品、廚具、汽車、機械、電梯、電器零件、彈簧片、地鐵零件等行業。
Widely used in the line of advertising board, Sheetmetal structure, high and low Voltage elictric cupboard industry, spare parts of the textile machines, hardware, metal handicraft article, kitchen wares, cars, machines, elevators, spare parts of the elictric devices, spring pieces, spare parts of the subway and so on.
適用材料/Appliable material：
    不銹鋼、碳鋼、合金鋼、彈簧鋼、鋁合金、銅板、鋁板、金、銀、鈦等金屬板材及管材。
Stainless steel, carbon steel, alloy steel, spring steel, Aluminum alloy, copper plate, Aluminum plate, gold, silver, Titanium, other metal plates and metal pipes

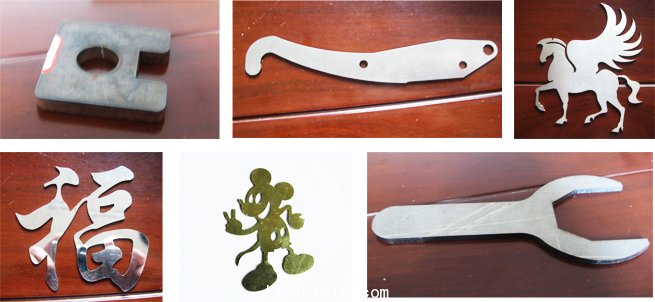

 激光切割樣品展示：
