VECTOR 系列焦熱電激光功率計探頭

星之球科技 來源：安特激光2013-01-05 我要評論(0 )

VECTOR 系列焦熱電激光功率計探頭是一種熱電型激光功率計。具有高精確度和高靈敏度，低噪音，光譜范圍寬，響應速度快，操作簡便等特點。探測器每一個波長經過, 嚴格的NI...

VECTOR 系列焦熱電激光功率計探頭是一種熱電型激光功率計。具有高精確度和高靈敏度，低噪音，光譜范圍寬，響應速度快，操作簡便等特點。探測器每一個波長經過, 嚴格的NIST校準，廣泛應用于醫用激光，激光器生產和激光技術等精密測量之中。




特點：
? 體積小巧，方便攜帶
? 結構堅固 &n, bsp;
? 便攜式激光能量、功率測量
? 探測器經過嚴格的NIST校準
? 高靈敏度
? USB接口

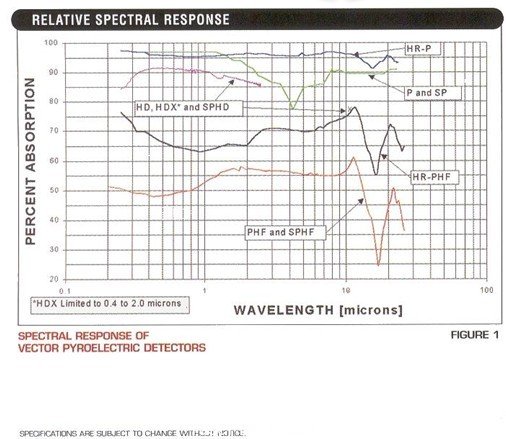

Fig.1 光譜范圍圖

主要參數：



型號

SP25

SPHF25

SPHD25

SP50

SPHF50

SPHD50

P25

PHF25

口徑直徑

25.4mm

25.4 mm

25.4 mm

50.8 mm

50.8 mm

50.8 mm

25.4 mm

25.4 mm

光譜范圍

See Fig. 1

See Fig. 1

See Fig. 1

See Fig. 1

See Fig. 1

See Fig. 1

See Fig. 1

See Fig. 1

最大功率

5 W*

5 W*

5 W*

5 W*

5 W*

5 W*

5 W*

5 W*

最小能量

7%**

7%**

7%**

7%**

7%**

7%**

7%**

7%**

噪音

4 μJ

4 μJ

4 μJ

16 μJ

16 μJ

16 μJ

4 μJ

4 μJ

最大能量密度

See Note 25

See Note 25

See Note 26

See Note 25

See Note 25

See Note 26

See Note 25

See Note 25

精確度

5%

5%

8%

5%

5%

8%

5%

5%

輸出靈敏度

8 V/J

8 V/J

2 V/J

2 V/J

2 V/J

2 V/J

8 V/J

8 V/J

最大重復頻率

100 pps

400 pps

40 pps

50 pps

400 pps

20 pps

100 pps

400 pps

最大脈沖時間

0.2 msec

0.045 msec

0.2 msec

0.4 msec

0.045 msec

0.4 msec

0.2 msec

0.045 msec

尺寸/cm

5.8 x 5.8 x 1.4

5.8 x 5.8 x 1.4

5.8 x 5.8 x 1.4

7.6 x 7.6 x 1.5

7.6 x 7.6 x 1.5

6.12 x 5.77

6.12 x 5.77

6.12 x 5.77
#p#分頁標題#e#

型號

PHD25

PHDX25

PHDX25UV

PHDX50

PHDX50UV

P50

PHF50

PHD50

口徑直徑



25.4 mm





7 mm





7 mm





15 mm





15 mm



50.8 mm

50.8 mm



50.8 mm



光譜范圍

See Fig. 1

See Fig. 1

See Fig. 1

See Fig. 1

See Fig. 1

See Fig. 1

See Fig. 1

See Fig. 1

最大功率

5 W*

5 W*

5 W*

10 W*

10 W*

10W*

10 W*

10 W*

最小能量

7%**

7%**

7%**

7%**

7%**

7%**

7%**

7%**

噪音

4 μJ

4 μJ

4 μJ

16 μJ

16 μJ

16 μJ

16 μJ

16 μJ

最大能量密度

See Note 26

See Note 27

See Note 28

See Note 27

See Note 28

See Note 25

See Note 25

See Note 26

精確度



8%



8%

8%

8%

8%



5%





5%





8%



輸出靈敏度

2 V/J

2 V/J

2 V/J

2 V/J

2 V/J

2 V/J

2 V/J

2 V/J

最大重復頻率

40 pps

40 pps

40 pps

20 pps

20 pps

50 pps

400 pps



20 pps



最大脈沖時間

0.2 msec

0.2 msec

0.2 msec

0.4 msec

0.4 msec

0.4 msec

0.045 msec

0.4 msec

尺寸/cm

6.12 x 5.77

8.76 x 9.88

8.76 x 9.88

8.76 x 9.88

8.76 x 9.88

6.12 x 5.77

6.12 x 5.77

6.12 x 5.77
#p#分頁標題#e#

備注：*全輻照傳感器 **中心吸收 ***選擇的范圍

#p#副標題#e#

NOTE

Note 1

AC2501, AC5001 30W/cm2@1064nm, 23W/cm2@532nm, 8.5W/cm2@355nm, 175mW/cm2@266nm

Note 2

ACX2501, ACX5001 Note 1 specs x 8 for 400nm to 1.2µm

Note 3

AC25UV, AC50UV, 384UV5, 388UV5, UC150UV 50W/cm2@355nm

Note 4

AC2504, AC5004 35W/cm2@1064nm

Note 5

AC2501, AC5001 100GW/cm2@1064nm, 78GW/cm2@532nm, 29GW/cm2@355nm, 580MW/cm2@266nm

Note 6

AC25UV, AC50UV, 384UV5, 388UV5, UC150UV

Repetitive pulses: 101MW/cm2@355nm; Single pulses: 3.5GW/cm2@355nm

Note 7

AC2504, AC5004 125GW/cm2@1064nm

Note 8

AC2500, AC5000, 360401, 360801, UC150 Max J/cm2 = 1,000 x (pulse width)1/2 to a max of 200J/cm2

Note 9

AC250FX, AC50FX Max J/cm2 = 4,950 x (pulse width)1/2 to a max of 12.3J/cm2

Note 10

ACX25FX, ACX50FX Max J/cm2 = 39,600 x (pulse width)1/2 to a max of 36.9J/cm2

Note 11

AC2501, AC5001 Repetitive pulses: 4.1J/cm2@1064nm, 3.2J/cm2@532nm, 1.2J/cm2@355nm, 24mJ/cm2@266nm Single pulses: 8J/cm2@1064nm, 6.2J/cm2@532nm, 2.3J/cm2@355nm, 46mJ/cm2@266nm

Note 12

ACX2501, ACX5001 Note 11 specs x 8 for 400nm to 1.2µm

Note 13

AC25UV, AC50UV, 384UV5, 388UV5, UC150UV

Repetitive pulses: 1.1J/cm2@355nm; Single pulses: 40J/cm2@355nm

Note 14

AC25004, AC5004 Repetitive pulses: 4.8J/cm2@1064nm; Single pulses: 10J/cm2@1064nm

Note 15

AC25FX, AC50FX Max p.p.d.: 70MW/cm2@1064nm pulse

Note 16

ACX25FX, ACX50FX Max p.p.d.: 560MW/cm2@1064nm pulse

Note 17

380401 27W/cm2@1064nm, 21W/cm2@532nm, 7.7W/cm2@355nm, 158mW/cm2@266nm

Note 18

380801 13.5W/cm2@1064nm, 10.5W/cm2@532nm, 3.85W/cm2@355nm, 79mW/cm2@266nm

Note 19

380401 90GW/cm2@1064nm, 71GW/cm2@532nm, 27GW/cm2@355nm, 530MW/cm2@266nm

Note 20

380801 45GW/cm2@1064nm, 35.5GW/cm2@532nm, 13.5GW/cm2@355nm, 265MW/cm2@266nm

Note 21

380401 Repetitive pulses: 3.7J/cm2@1064nm, 2.9J/cm2@532nm, 1J/cm2@355nm, 20mJ/cm2@266nm Single pulses: 7J/cm2@1064nm, 5.6J/cm2@532nm, 2.1J/cm2@355nm, 41mJ/cm2@266nm

Note 22

380801 Repetitive pulses: 1.85J/cm2@1064nm, 1.45J/cm2@532nm, 0.5J/cm2@355nm, 10mJ/cm2@266nm Single pulses: 3.5J/cm2@1064nm, 2.8J/cm2@532nm, 1.05J/cm2@355nm, 20.5mJ/cm2@266nm

Note 23

AC25HD, AC50HD, UC150HD, UC150HD40 Max J/cm_ = 4,500 x (pulse width)1/2 to a max of 14J/cm2

Note 24

ACX25HD, ACX50HD Max J/cm2 = 36,000 x (pulse width)1/2 to a max of 42.5J/cm2

Note 25

SP25, SPHF25, SP50, SPHF50, P25, PHF25, P50, PHF50, PHF02, PHF05, PHF09, P05, P09 Max J/cm2 = 316 x (pulse width)1/2

Note 26

SPHD25, SPHD50, PHD25, PHD50 Max J/cm2 = 4,500 x (pulse width)1/2 to a max of 1.4J/cm2

Note 27

PHDX25, PHDX50 Max J/cm2 = 36,000 x (pulse width)1/2to a max of 12.6J/cm2

Note 28

PHDX25UV, PHDX50UV Max J/cm2 = 18,000 x (pulse width)1/2to a max of 5.6J/cm2
